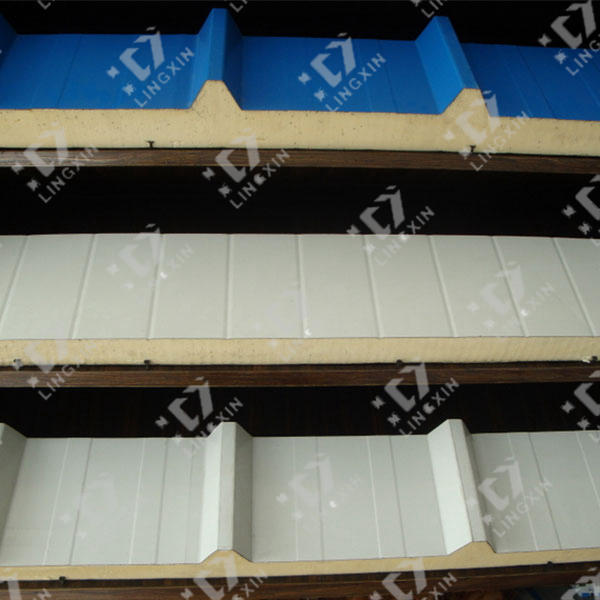

The production line is used for continuous production of polyurethane cold storage board, wall board type double sided rigid insulation board.
Caigang tile production line with a high degree of automation, easy operation, stable operation and other characteristics, the production of flat surface, interface gap precision beautiful advantages. It can satisfy the continuous production of the composite sandwich board whose core material is polyurethane, that is, the liquid material is continuously sprayed to the upper and lower panel of the pressing molding, which can react, foam, solidify and form in the double-track foaming molding machine.
Technical parameters of color steel tile production line:
line speed
2~5m/min
Cold storage plate metal forming machine
6m 7 main roller
Wall panel metal molding machine
7.5米 9 main roller
Laminated conveyor length
24m
Maximum heating temperature
70℃
Speed of cloth dispenser
100mm/s
Adjust the distance back and forth of the cloth dispenser
500mm
Length of preheated drying passage
500mm
Length of preheated drying passage
5000mm
High pressure foam model
LXPU-H2-B30
Overall dimension of production line (length × widest part)
